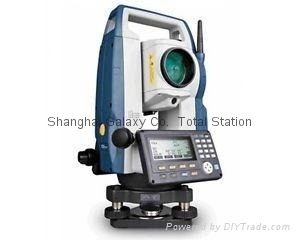

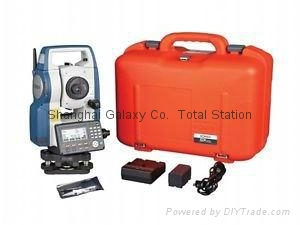

Sokkia CX101 Total Station
Sokkia’s new CX Total Station was inspired by a long tradition of quality and reliability from Sokkia. This new series includes exciting
new features such as Long Range Bluetooth built-in, and the exclusive TSshield advanced security and maintence system.
CX Total Station
A powerful and compact total station with rugged water/dustproof
design. Includes the innovative TSshieldTM advanced security and
maintenance system, and exclusive 300m+ long range Bluetooth
RED-Tech Technology, reflectorless EDM
TSshield Advanced Security and Maintenance (Coming Soon!)
Long Range 300m+ Bluetooth Class 1
Advanced Angle Measurement System
The longest battery life - 36 hours
Waterproof, Rugged, and operator friendly
A reliable technology from Sokkia has gotten even better. In side-by-side tests against all the competition, the CX EDM outperforms
the rest. A tight beam signal, and strong returns from even difficult dark and wet surfaces.
TSshield Advanced Maintenance
Every instrument has a telematics card installed that will communicate to the Sokkia servers every day. The system then reviews what
firmware version is installed. From this information Sokkia can send an alert to the CX total station if a newer version is available.
TSshield Advanced Security (Available in a future firmware.)
The CX total stations must be registered at the point of sale. From registration comes the power to control the operation of the CX.
An owner can log into the TSshield website and Lock an instrument if it is lost or stolen. This theft deterrent functionality is the first in
Long Range Bluetooth Class 1 Communications, 300m+
When connected with an external data collector, the CX communication provides control at the remote rod position. The controller
operator can record the data for codes and rod heights at the point of measurement. For stakeout, the remote operator can view
directions required to find the next stake point. The system becomes a very productive system, similar to a robotic system where the
instrument man simply needs to follow, aim, and focus on the remote prism.
Advanced Angle Accuracy
Sokkia’s advanced angle encoder technology provides u201cBest in class” 1 arc second angle accuracy. Technology allows the instrument to
calibrate its own angle measurement system by itself. With Tangents that lock you can be secured that the instrument will hold your angle
The Longest Battery Life - 36 hours
36 hours provides for almost a full week’s operation in the field before you need to recharge. The batteries are common to many other
products from Sokkia.
CX Product Registration
As part of TSshield, all CX total stations need to be registered for operation at the time of sale. Customer and dealer information can be
entered at this point and an end user license agreement is executed to secure the right ofSokkia to monitor the instrument through the
TSshield program. Information is provide in the packaging of the CX series.
