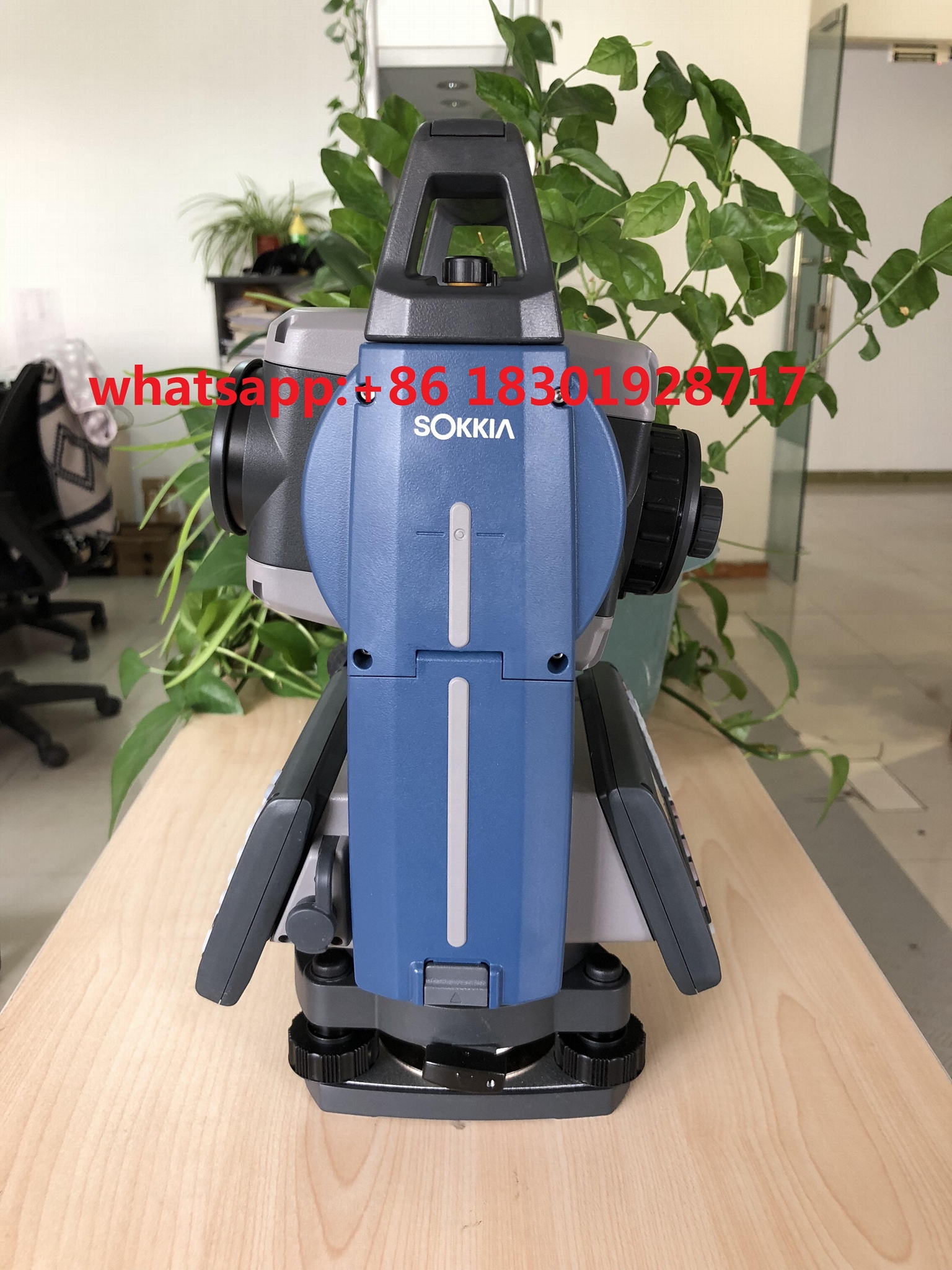

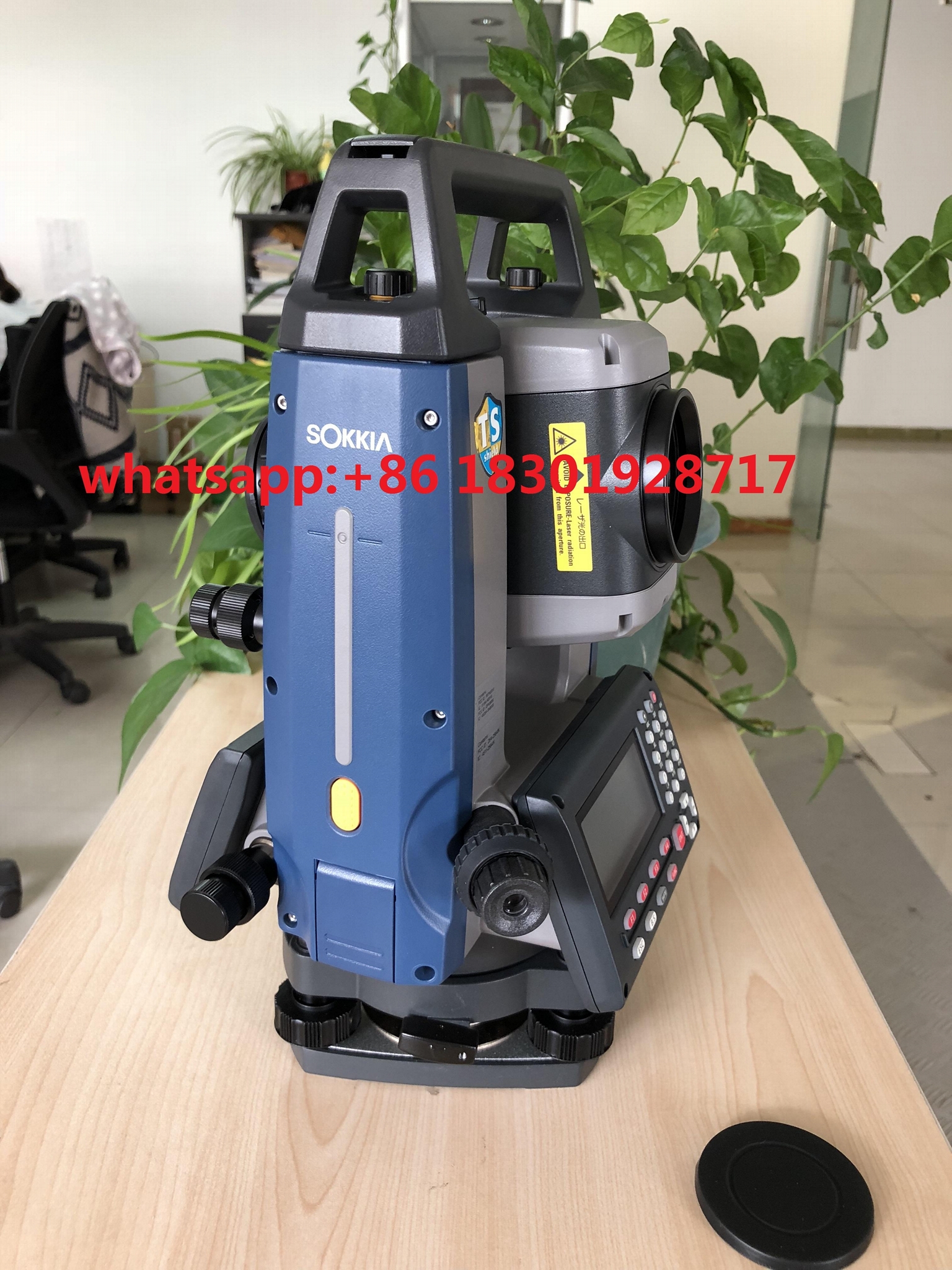

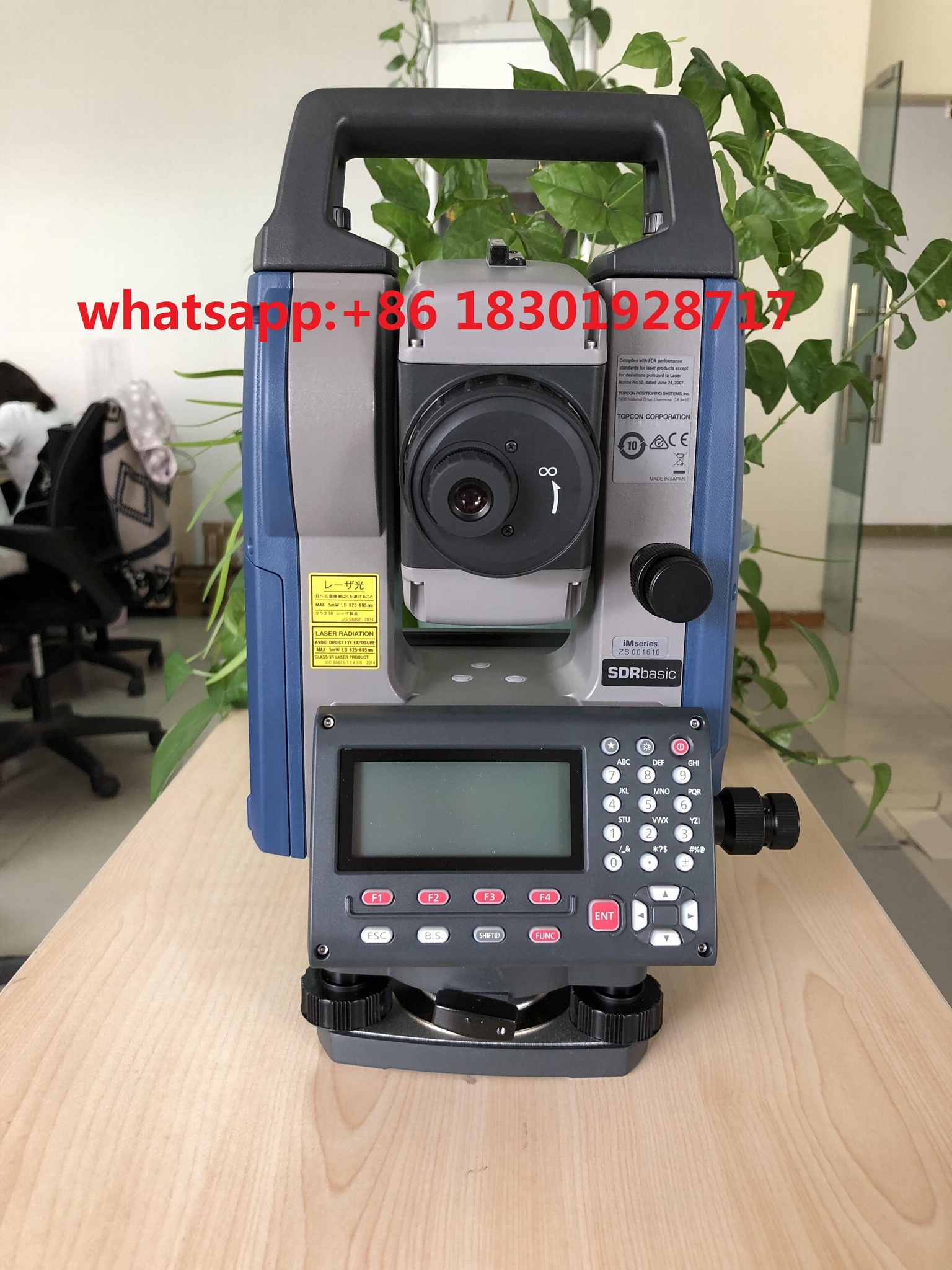

Sokkia new model IM105 total station iM-100 Series Sokkia total station:
Key Features:
- 1,000 m non-prism range
- 6,000 m prism range
- “Best-in-class” 1″angle accuracy
- Up to 32 GB storage
- Waterproof/dust-proof IP66
- Environmentally protected
- Compatible with industry standard thumb drives
- 21 hour battery life in normal mode
Description
This powerful, cost efficient Manual Total Station was designed from the ground up to deliver the latest technological advantages in a small, sleek design. It features an ultra-powerful EDM, best-in-class angle accuracy encoder system to provide the accuracy, speed, and endurance needed on the most demanding job sites. Plus, with a rugged housing and extented battery-life you’ll be able to handle even the toughest conditions.
The GM-105 Manual Total Station was designed from the ground up to deliver the latest technological advantages in a small, sleek design. It’s rugged waterproof/dustproof magnesium-alloy housing encases an ultra-powerful 6,000m prism range 1.5mm accuracy EDM, Best-in-class 1″ angle accuracy angle encoder system, and 28 hour battery-life power supply. The GM-100 also features dual axis compensation, 32 GB USB, Bluetooth to 10m and TSshield™ telematics for ultimate security and investment protection.
Designed to deliver the latest technological advantages in a sleek design, each GM-100 total station is equipped with a best-in-class EDM. The total station measures up to 5,000 meters to standard prisms (6,000 meters under good conditions) and up to 800 meters in reflectorless mode. Other features include a built-in laser plummet, dual-axis compensation, Bluetooth® connectivity, and a battery life of up to 28 hours. In addition to an internal memory of 50,000 points, the total station also features a USB 2.0 slot for up to 32GB of storage. TSshield™ technology provides ultimate security and maintenance capabilities for your total station thanks to a telematics-based multi-function communications module. If an activated total station is lost or stolen, just send a coded signal to the instrument and disable it – anywhere in the world. You can also access cloud-based Topcon servers for available software updates and firmware enhancements. Waterproof/dustproof IP66 design
|
MODEL
|
IM-105
|
|
Telescope
|
|
Magnification / Resolving power
|
30x/ 2.5"
|
|
Length
|
171 mm (6.7 in.)
|
|
Objective aperture
|
45 mm (1.8 in.)
(48 mm (1.9 in.) for EDM)
|
|
lmage
|
Erect
|
|
Field of view
|
1°30'(26 m/1,000 m)
|
|
Minimum focus
|
1.3 m (4.3 ft.)
|
|
Reticle illumination
|
5 brightness levels
|
|
Angle Measurement
|
|
Display Resolution
|
1"/5"
|
|
Accuracy (ISO 17123-3:2001)
|
5”
|
|
IACS (ndependent Angle Calibration System)
|
Provided
|
|
Dual-axis compensator /
Collimation compensation
|
Dual-axis liquid tilt sensor,
working range:±6'(±111 mgon)/
Collimation compensation available
|
|
Distance Measurement
|
|
Laser output
|
Reflectorless mode: Class 3R/
Prism /sheet mode: Class 1
|
|
Measuring range
(under average conditions
|
Reflectorless
Reflective sheet
|
0.3 to 800m (1.0 to 2,624ft.)
RS90N-K: 1.3 to 500 m (4.3 to 1,640 ft.)
RS5ON-K:1.3 to 300 m(4.3 to 980 ft.)
RS10N-K:1.3 to 100 m(4.3 to 320 ft.)
|
|
|
Mini prisms
One AP prism
|
CP01:1.3 to 2,500m(8,200ft.),
OR1PA:1.3 to 500m(1,640ft.)
1.3 to 5,000 m (4.3 to 16,400 ft.)/
Under goodconditions:6,000 m(19,685 ft.)
|
|
Display Resolution
|
Fine/Rapid: 0.001 m/0.01 ft./ 1/8 in.
Tracking: 0.01 m/0.1 ft./1/2 in.
|
|
Accuracy(So 17123-4:2001)
(D=measuring distance in mm)
|
Reflectorless
Reflective sheet APICP prism
|
(2+2 ppm x D) mm7
(2+2 ppm x D)mm
(1.5+ 2 ppm x D)1.5mm
|
|
Measuring time
|
Fine: 0.9 s(Initial 1.5 s),
Rapid:0.6 s(Initial 1.3 s),
Tracking:0.4 s (initial 1.3 s)
|
|
lnterface and Data management
|
|
Display / Keyboard
|
Graphic LCD,192 x80 dots,backlight,
contrast adjustment /Alphanumeric keyboard: 28 keys with backlight
|
|
Control panel location
|
on both faces (second display is optional)
|
|
Trigger key
|
On right instrument support
|
|
Data storage
|
lnternal memory
Plug-in memory device
|
Approx.50,000 points
USB flash memory (max.32GB)
|
|
lnterface
|
Serial RS-232C,USB2.0
(TypeA, for USB flash memory)
|
|
General
|
|
Laser-pointer
|
Coaxial red laser using EMD beam
|
|
Guide light
|
Green LED (524 nm) and
Red LED(626 nm),
Operating range:1.3 to 150 m
(4.3 to 490 ft.)
|
|
Levels
|
Graphic Circular level(on tribrach)
|
6 (Inner Circle)
10'/ 2 mm
|
|
|
Plate Level
|
Regional Dependent
|
|
Optical plummet
(optional for NA,LA and EU)
|
Magnification: 3x,
Minimum focus: 0.3m (11.8 in.) from tribrach bottom
|
|
Laser plummet
(optional for Oceana and Russia)
|
Red laser diode (635 nm± 10 nm),
Beam accuracy: ≤1.0 mm at 1.3 m,Class 2 laser product
|
|
Dust/Water Rating
|
lP66(IEC 60529:2001)
|
|
Operating Temperature
|
-20 to +60°C
|
|
Size with handle
(W x H x D)
|
Control panel on both faces: 183×181×348 mm
Control panel single:
face:183×174x348mm
|
|
Weight with battery and tribrach
|
Approx.5.3 kg
|
