Dual Beam Echo Sounder SystemD530

Model No.︰CHC D530
Brand Name︰CHC
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 2 Related Items
Prev12

Product Description
CHC D530 is the Dual Beam echo sounder system with both higher frequency beam and lower frequency beam.
  • Various marine project of depth measurement in the Sea, River, Lake, and Port and Waterway Dredging
  • Hydrological Survey on hydraulic Power Plant, reservoir and other hydro utilities




 Features

  • Integrated with all the merits of D330
  • Integrated High and Low dual beam Sensor, the mud depth measurement by the co-work of dual beam can be sub meter to meter level.
  • Strong penetrating ability of the low beam, identifying D530 in the water with high depth, high soil density, high flow velocity and much whirlpool.
  • The minimum measuring ability is only 0.3m for high beam, and only 1m for low beam.



 Technical Parameters

Specification
Working Frequency:       200KHz/20KHz
Transmitting Angle:        7 Degree
Speed Range:                   1300-1700m/s
Measuring Ability:            0.3m-300m/1m-1000m
Accuracy:                          +1cm+1%h
Sensor Depth Range:       0m-9.9m
Resolution:                        1cm
Power Supply:                    DC9-15/AC220V
Power Consumer:             <25Watt
Transmitting Power:          350W/450W
Internal Memory:               1GB(Up to 2GB)
Working Environment:       -30 ~60







Dimensions:                       34cmX30cmX15cm
Weight:                               8.5Kg*
I/O Port:                              Keyboard and Mouse Ports, Printer Port, two RS232 Ports, two USB Ports, one VGA monitor Port
Main Unit Screen:               Touch Screen
Software:                             Can Install Software based on Windows™ OS
* Not include the Sensors

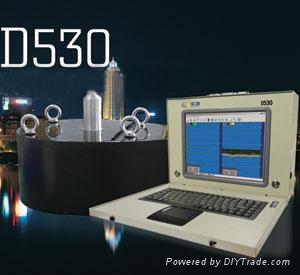

Product Image
