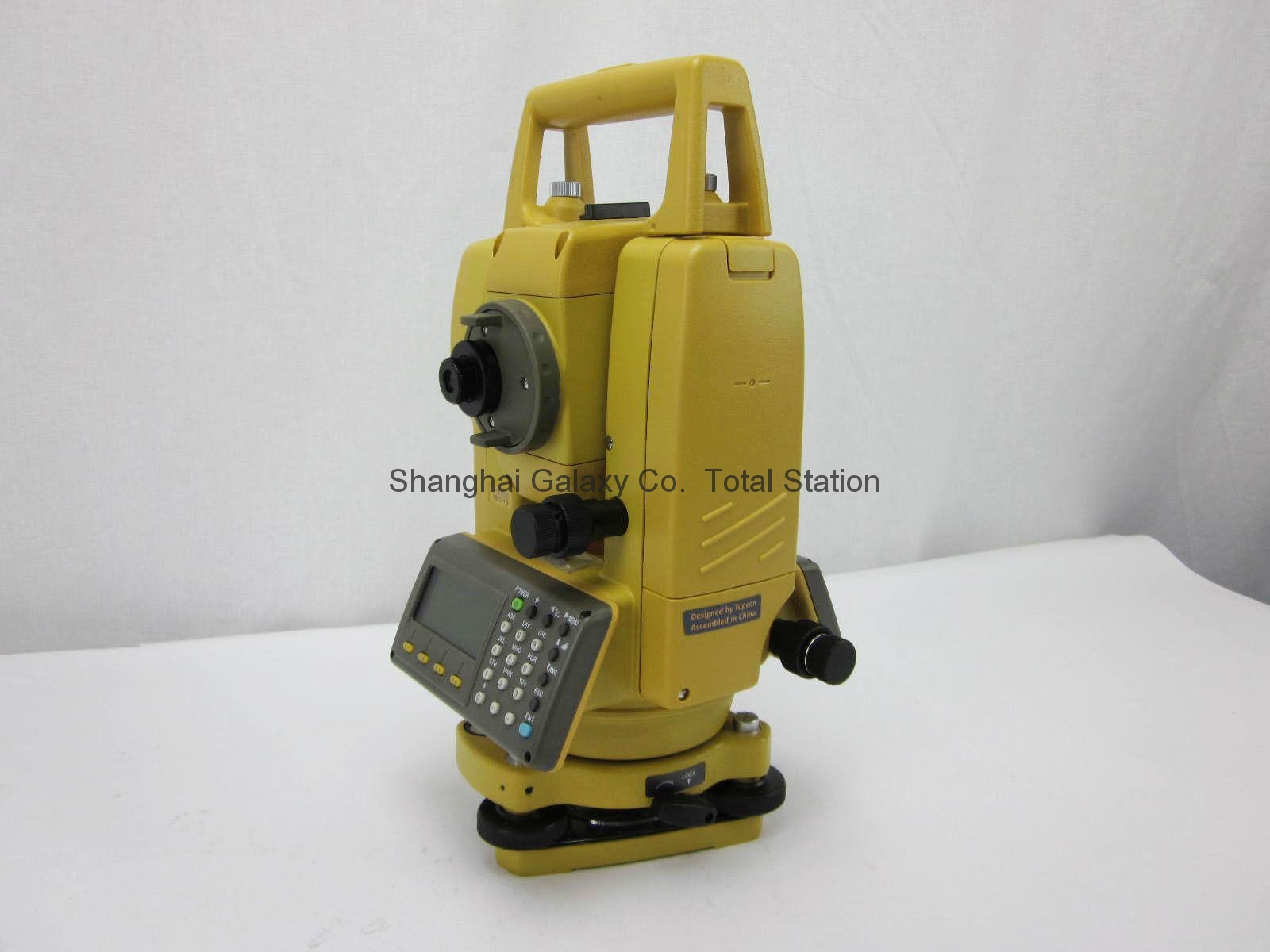

TOPCON Total Station GTS-250 Series Total Station

  • TOPCON Total Station GTS-250 Series Total Station
  • TOPCON Total Station GTS-250 Series Total Station
  • TOPCON Total Station GTS-250 Series Total Station
  • TOPCON Total Station GTS-250 Series Total Station
  • TOPCON Total Station GTS-250 Series Total Station
Model No.︰GTS252 GTS255
Brand Name︰Topcon
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 58 Related Items
Prev1718192021Next

Product Description

The GTS-250 series combines Topcon's tradition of rugged field-ready quality and accuracy and places it in an economical, compact design perfect for everyday measuring and positioning applications.

Meeting or exceeding the precision and durability of most competitive high end models, Topcon's GTS-250 provides construction professionals and surveyors performing construction layout with a dedicated solution. The on-board software makes it easy to rapidly shoot points for quick adjustments or resets. For more advanced layout tasks use your GTS-250 with any of Topcon's field controllers running MAGNET™ software.

· Economical, value priced measuring solution

· Rugged, durable, water resistant design (IP54)

· Two accuracies from which to choose: 2" and 5"

· Dual-axis compensation

· Onboard programs and 24,000 point data storage

Ideal as a construction stakeout total station



Specifications:



Telescope

150 Millimeters

Objective Lens Diameter

45mm (EDM:50mm)

Magnification

30x


Erect

Field of View

1°30

Min. Focus Distance

1.3 meters

Resolve Power

3 "

Measurement Range

1 Prism

6560 ft, 2000 meters

3 Prism

8856 ft, 2700 meters

Measuring Accuracy

Prism Mode

±(2mm + 2ppm x D)m.s.e. fine, N/A

Measurement Time

1mm: 1.2sec. (Initial 4sec.) fine, 0.2sec.



(Initial 3sec.) coarse, N/A

Angle Measurement

Method

Absolute Reading

Detection

2 horizontal, 1 vertical

Minimum reading

5”/1”, 1/5 mgon

Tilt Correction

Type

Automatic Vertical and Horizontal compensator

Method

Liquid surface reflective profile sensor reading type

Compensating Range

±3'

Correction Unit

1 arc sec, N/A

Computer Unit

Display

2 screen, dot matrix graphic LCD display

Power

Approximate battery life

9 hours including distance measurement , 40 Angle measurement only

Durability



Protection against water and dust

IP54

Temperature

-20 to 50 degrees C  (-4 to 122 degree F)

Weight

Instrument  4.9KG (10.8lb)
