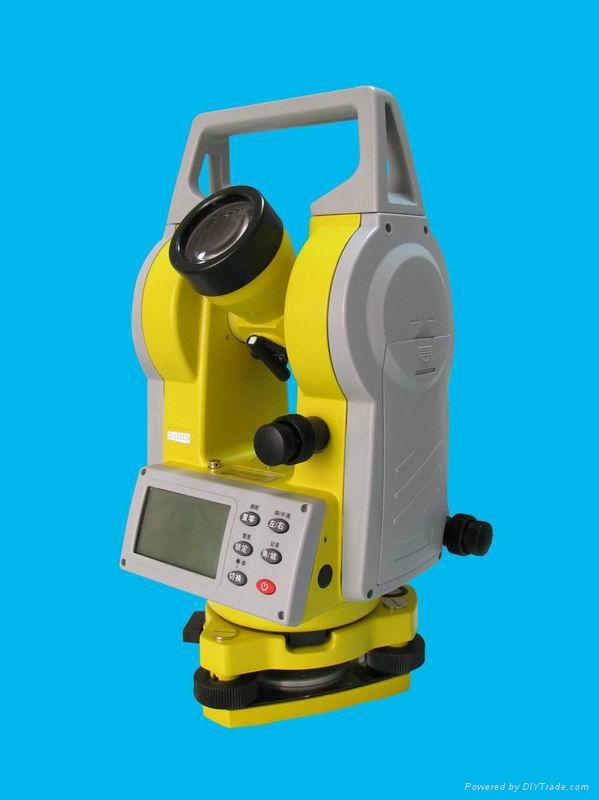

Brief description
·Large screen with a time display,high-brightness background-lighting
·Symmetrical support structure to ensure stability
·Build-in standard laser center-point equipment is simple and easy to use
·32-bit high speed CPU board ,processing speed .Fast Rotating telescope and bracket with not lead to loss of date and alarm
·Can store 1000 data,and the data structure is time ,angle and distance
·Wide handle showing human design,beautiful and practical
·High-precision and even intensity of laser on button for easy operation
Relevant parameter
Size:160*175*340mm
Color: Yellow and Gray
Weight:4.8kgs
Detailed profile
Coaxial error of laser
Axis and Visual the collimation axisNo <=10"
Working time About 45hours
GET-202GET-202L
Telescope
Length156mm156mm
Objective lens aperture 45mm45mm
Magnification 30X30X
ImageErectErect
Field of view1°30′1°30′
Resolving power3.5″3.5″
Shortest sighting distance1.3m 1.3m
Additive constant00
Stadia proportion constant100100
Angle measurement
Minimum reading1"/5"1"/5"
Accuracy2"2"
Display
Display methodDouble sides displayDouble sides display
IIIuminationProvidedProvided
Compensator
Tilt sensorA providedA provided
Compensating range±3′±3′-
Optical plummet
Magnification3X3X
Field of view5°5°
Focusing rang0.5m∼∞0.5m∼∞
Level sensitivity
Plate level30″/2mm30″/2mm
Circular level8′/2mm8′/2mm
Data output
Output interface |
|
|
|
