X900 GNSS RTK GPS

Model No.︰X900
Brand Name︰CHC
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 33 Related Items
Prev2930313233Next

Product Description

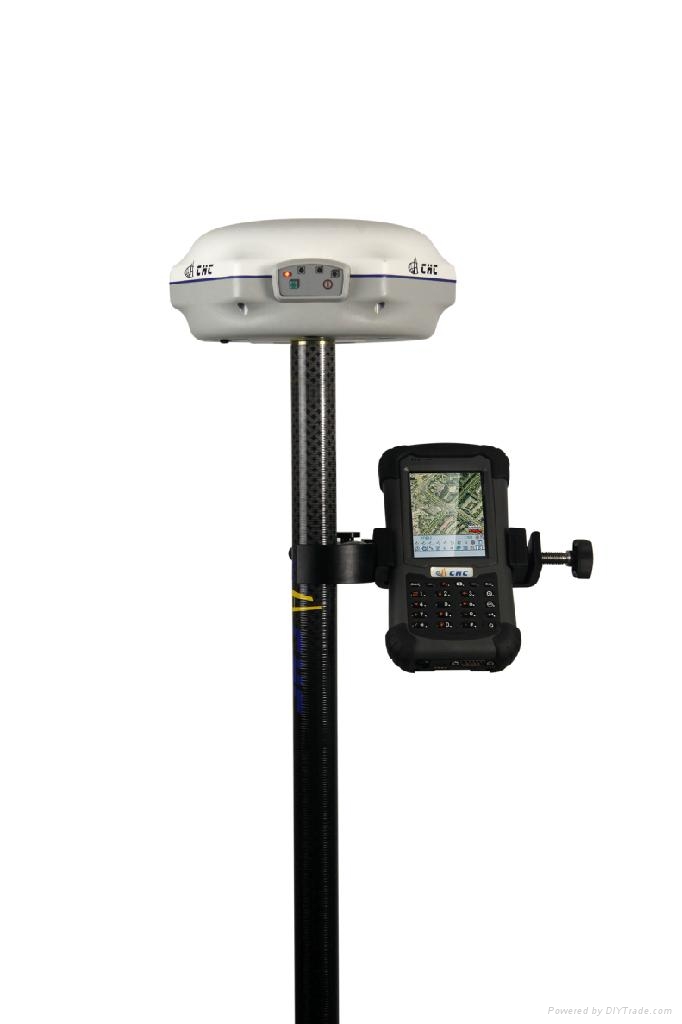

X900 GNSS RTK System

Information

The  X900 GNSS receiver  brings  extremely affordable and reliable GPS+GLONASS real-time centimeter level solution to surveyors without the conventional cost associated with GNSS solutions.

 The X900 GNSS combines field proven 72 channels GPS+GLONASS  Novatel ™  technology and state-of-the art RTK solution for either traditional base + rover configuration and RTK networks thanks to its flexible GPRS and UHF communication systems.

In a difficult economy situation with higher investment constraints, surveyors are expecting a wider range of GNSS solutions. Complementing our X91 GNSS high-end solution, we have designed the X900 to offer accurate and reliable RTK solution whilst being more affordable.  The X900 is available in various bundled packages to fit end users need for data collection software and handheld controllers.



 Features

  Field proven 72 channel Novatel GNS board (GPS, Glonass and SBAS)

 Excellent RTK performances in both network RTK and base + rover configuration.

   Communication

o   1 RS232 serial port

o   1 high-speed USB

o   Integrated Bluetooth ® communications port

o   Optional GSM/GPRS modem

   UHF radio modem  with compatibility with Pacific Crest and Satel transmitter for easy integration in existing customer equipment pool:   Optional Internal UHF receiver 410/430 -430/450 - 450/470 MHz

 Technical Parameters

Real Time Kinematic (RTK)

Horizontal: +(10mm+1ppm) RMS

Vertical: +(20mm+1ppm) RMS

Initializing Time: 10S

Initialization Reliability: Typical >99.9%

Static

Horizontal: +(5mm+1ppm) RMS

Vertical: +(10mm+2ppm) RMS

Data Format

RTCM2.1, RTCM 2.3, RTCM 3.0, CMR, CMR+, input and output

NMEA0183 outputs, GSOF outputs

RINEX and HCN outputs for GPS raw data

Physical Reference

Size (HXLXW):  84mmX190mmX200mm

Weight: 1.4Kg (With Battery)

Electrical Reference

Power Consumption: 2.8W

Battery Volume: 2200mAh

Battery Life: 8 Hours (Static)

                     4.5 Hours (RTK)

                     1000 Recharges

External Power: 9-18VDC

Environment

Working Temperature: -30 C- +65 C

Storage Temperature: -40 C- +75 C

Humidity: 100% condensation

Waterproof and Dustproof: IP67, protected from temporary immersion to depth of 1 meter, floating.

Shock and Vibration: Survive from 2 meters drop onto concretes

Characteristics

Buttons and Display: 2 buttons/4 LED lights

I/O: RS232, USB, Bluetooth®

Channel: 72 channels

Datalink

Power (UHF): 1W-20W Adjustable

Band Width: 410-430MHz/430-450MHz/450-470MHz
